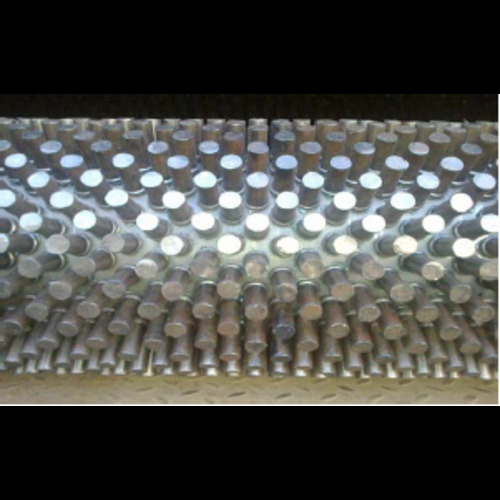

Studded Tubes

Studded tubes are heat-transfer tubes fitted with small metal studs welded onto their external surface. These studs increase the effective surface area, improve heat transfer, and provide a suitable anchoring surface for refractory materials in high-temperature industrial applications.

Construction

• Base tube: Manufactured from carbon steel, alloy steel, or stainless steel, depending on the operating conditions.

• Studs: Short metal pins or projections made from compatible materials.

• Welding: Studs are attached to the tube surface using suitable welding processes to ensure secure bonding.

• Arrangement: Studs may be installed in straight rows, staggered patterns, or other specified configurations.

• Surface protection: Depending on the application, refractory lining or protective coatings may be applied.

Working Principle

Studded tubes improve heat transfer by increasing the external surface area exposed to hot gases. In furnace and boiler applications, the studs can also provide mechanical anchorage for refractory materials, helping the lining remain attached to the tube surface under high-temperature operating conditions.

Applications

• Boilers and furnaces

• Waste-heat recovery systems

• Fired heaters and reformers

• Petrochemical and refinery equipment

• Incinerators and thermal processing units

• Refractory-lined combustion chambers

Advantages

• Increased effective heat-transfer surface area

• Strong anchoring support for refractory linings

• Suitable for demanding high-temperature environments

• Improved protection of tube surfaces when used with suitable refractory systems

• Customizable stud size, spacing, material, and arrangement

In simple terms: Studded tubes are metal tubes with small welded pins on their outer surfaces. These studs can enhance heat-transfer performance and help hold refractory lining in place in furnaces, boilers, and other high-temperature equipment.
