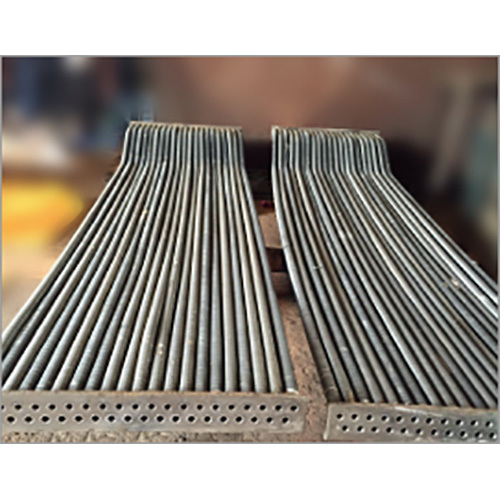

Condenser With Bent Aluminum Fin Tubes

Get a Price/Quote

MOQ : 1 Unit

Condenser With Bent Aluminum Fin Tubes Specification

Application
Industrial

Surface Finish
Mill Finish

Finish
Smooth

Working Presssure
High

Material
Metal

Color
Black

Warranty
Yes

Condenser With Bent Aluminum Fin Tubes Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Condenser With Bent Aluminum Fin Tubes

Introducing the new release Condenser With Bent Aluminum Fin Tubes, a top-drawer industrial solution known for its spectacular performance and eminent build quality. Manufactured and exported by a renowned supplier from India, this condenser boasts a smooth mill finish in striking black metal. Designed to operate under high working pressure, it guarantees durability with an included warranty. Its bent aluminum fin tubes maximize heat exchange efficiency, making it the ideal choice for advanced industrial applications. Get it now and buy online for guaranteed premium performance and reliability.

Versatile Industrial Application Highlights

The Condenser With Bent Aluminum Fin Tubes is suitable for heavy-duty industrial usage, excelling in environments requiring high working pressure. With its efficient bent aluminum fin design, it is ideal for applications in process cooling, HVAC systems, and large-scale machinery. Its robust metal construction and smooth, mill finish make it a prime choice for industries seeking reliable, high-capacity solutions.

Sample Policy, Certifications & Payment Details

Shipped goods are handled with utmost care, ensuring sample handover aligns with our policy standards. Each product comes certified and thoroughly inspected, guaranteeing quality valuation before dispatch. Flexible payment terms are available to accommodate various buyer requirements, assuring a seamless transaction experience. We provide clear documentation supporting every step and facilitate a hassle-free procurement process for orders shipped across global markets.

Extruded Aluminum Fin Tubes (bimetallic Fin Tube)

Helically Wound High Fin Tubes, 'G' Fin (also called "Embedded Fin" or "Edge Grooved fin")

'LL' Fin ( Also called "Shoulder Tension Fins", "Wrap On Fins"),

'KL' Fin (Also called Knurled 'L' Fins)

3 machines (2 lines) capable of manufacturing about 6,24,000 Mtrs. of helically wound wrap on type Aluminum fin tubes (G , LL, KL) per annum. (can be increased)
1 machines (1 lines) capable of manufacturing about 2,18,000 Mtrs. of Extruded fin tubes (can be increased as we are waiting for the delivery of the second line)

Technical Details

FIN DETAILS

Fin Height > Min 0.31" (7.87 MM) To 0.75" (19.05 MM)
Fin Density : Minimum 7 Fins Per Inch To Maximum 12.4 Fins Per Inch
Material : Aluminum & Copper

TUBE DETAILS

Tube Diameter : Min0O.5" (12.7 MM) To Max. 2" (50.8 MM) OD
Tube Material : Inconel Carbon Steel, Super Duplex and Duplex Steel, Stainless Steel (ANY GRADE), Copper & Copper Alloys or as per Customer's Requirement.

PRODUCTION TECHNIQUE & APPLICATIONS

'G' Fin (also called "Embedded Fin" or "Edge Grooved Fin") : The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material under pressure. This ensures that maximum heat transfer is maintained at high tube metal temperatures. Maximum operating temperatures for this fin type is 450 deg C.

'L' Fin (also called "Shoulder Tension Fins", ''Wrap On Fins") : The strip material is subjected to controlled deformation under tension giving the optimum contact pressure at the foot of the fin onto the base tube thus maximizing the heat transfer properties. The foot of the fin considerably enhances the corrosion protection of the base tube. Maximum operating temperature for this fin type is 150°C.

"KL' Fin(also called Knurled "L" fin) : Manufactured exactly as the 'L' fin except that the base tube is knurled before application of the fin foot. After application the fin foot is knurled into the corresponding kKnurling on the base tube thereby enhancing the bond between the fin and tube resulting in improved heat transfer characteristics. Maximum operating temperature for this fin type is 260 deg C.

Extruded Fin (Bimetallic Fin ): The main tube (mother tube) is covered with an Aluminum Muff and the fins are formed using the forming force. This results into very good mechanical bonding of the Aluminum Muff with the mother tube to have a very good heat transfer properties. The fins cover the whole tube & have a very good anti-corrosive properties. Maximum operating temperature for this type of fin is 350 deg C.

FAQ's of Condenser With Bent Aluminum Fin Tubes:

Q: How does the bent aluminum fin tube design enhance condenser performance?

A: The unique design of bent aluminum fin tubes increases the surface area for heat exchange, resulting in improved efficiency and faster cooling in industrial applications.

Q: What are the main applications of this condenser model?

A: This condenser is used primarily in process cooling, HVAC systems, and machinery operations that require stable heat transfer under high working pressure conditions.

Q: When and where can I purchase the Condenser With Bent Aluminum Fin Tubes?

A: You can purchase this new release online at any time, directly from our official exporter and manufacturer outlets based in India.

Q: What is the warranty coverage for this condenser?

A: Each product is shipped with a comprehensive warranty, protecting buyers against manufacturing defects and ensuring dependable use in industrial settings.

Q: What is the process for obtaining certified samples?

A: Certified samples are shipped after order confirmation and valuation, with detailed handover documentation provided to meet sample policy standards.
